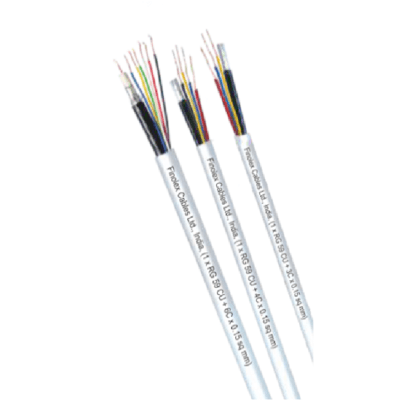

RG59 CCTV CABLE (4+1)
• Co-axial (Video Cable) Inner Conductor, Solid Bare Copper
• Gas Injected Physical Foam Polyethylene Dielectric
• 1st Shield: Bonded Aluminum Tape
• 2nd Shield: Aluminum Alloy Braid Co-axial Jacket PVC Black
• 3 Power Cores – Solid Copper Conductor
• 4 Power Cores – Solid Copper Conductor
• 6 Power Cores – Solid Copper Conductor
• Flame Retardent PVC Jacket, ST1 Grade Conforming to IS 5831
Inner Conductor dc Resistance
Max. 3.55 Ω/Km at 20°C
Capacitance (Nom.)
53.0 pF/m
Characteristic Impedance
75 ± 3 ohm
Structural Return Loss Min.
15 dB @ 1 – 1000 MHz
Nominal Velocity Ratio
85%
