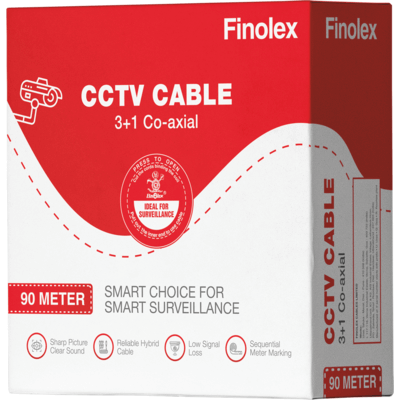

CCTV CABLE (3+1)
• Co-axial (Video Cable) Inner Conductor Solid Bare Copper
• Solid Polyethylene Dielectric
• 1st Shield:- Bonded Aluminum Tape; 2nd Shield – Aluminum Alloy Braid
• Co-axial Jacket PVC Black
• 3 Power Cores – Plain Stranded Copper Conductor
• Flame Retardent PVC Jacket, ST1 Grade Conforming to IS 5831
DC Resistance (Inner Conductor)
Max. 62.0 Ω/Km at 20°C
Braid Resistance
Max. 75.0 Ω/Km at 20°C
Loop Resistance
Max. 138.0 Ω/Km at 20°C
Capacitance Between Inner & Outer Conductor
≤ 158.00 pF/meter
Flexible Power Cores Resistance of Power Cores
Maximum 155.0 Ω/km @ 20˚C
