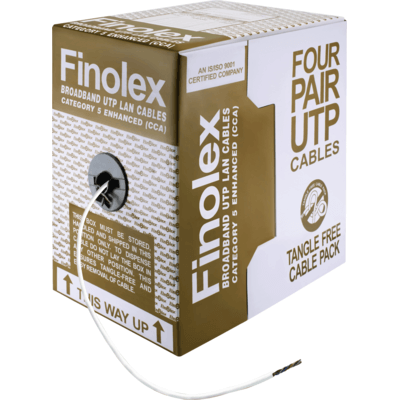

0.5×4 Pair UTP CAT-5 (E) CCA
• LAN CABLE – 24 AWG Copper Clad Aluminium Conductor
• High Density Polyethylene Insulation
• Fire Retardant PVC Sheath
• Sheath Colour Cream
• Generally conforming to ANSI/TIA – 568C.2
• Temperature Rating – 60°C as per UL 1581/CMX Flame Rating
| Electrical Performance | (At 100MHz) |
| Impedance | 100 ± 15 Ω |
| (NVP) Velocity of Propagation | 65% min @ 100Mhz. @ 20°C |
| Delay Skew | 45 ηs / 100mtrs. max. @ 1~ 100MHz η. |
| Propagation Delay | 538 ηs / 100mtrs. @ 100 MHz @ 20°C max |
| DC Resistance | 14.0 Ω / 100mtrs @ 20°C max. |
