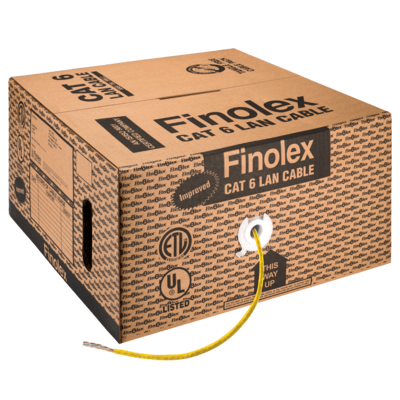

0.5 x 4P UTP – CAT6
• LAN CABLE – 23 AWG Annealed Bare Solid Copper Conductor
• High Density Polyethylene Insulation
• Fire Retardant PVC Compound (FRPVC) Sheath
• Low Density Polyethylene Separator
• ANSI/TIA-568C.2, ETL Verified, UL Listed & Verified For CAT 6
• Temperature Rating: 75°C
Electrical Performance
(At 250MHz)
Impedance
100 ± 15 Ω
(NVP) Velocity of Propagation
62.10% min @ 250 MHz
Delay Skew
45 ηs / 100mtrs. @ 20°C max for 1 MHz ~ 250 MHz
Propagation Delay
536 ηs / 100mtrs. max @ 20°C @ 100 MHz
DC Resistance
9.38 Ω / 100mtrs @ 20°C max
